gitlab安装

centos7通过systemd管理

• 添加仓库源

curl -sS https://packages.gitlab.com/install/repositories/gitlab/gitlab-ce/script.rpm.sh | sudo bash

• 查看有哪些版本

yum --showduplicates list gitlab-ce

• 安装

修改域名,也可以安装完再修改( /etc/gitlab/gitlab.rb) external_url参数

EXTERNAL_URL="https://git.yfklife.cn" yum install gitlab-ce #建议把rpm包缓存到本地做预留，以后不麻烦找包

• 重新加载配置（如果有修改过gitlab.rb文件需要执行）

gitlab-ctl reconfigure

• 重启

gitlab-ctl restart

• 查看

gitlab-ctl status #查看所有服务状态
gitlab-ctl start/stop #启动或停止所有服务，后面加名称可操作单个服务
gitlab-ctl tail nginx #查看nginx日志，或其他服务日志

• 默认目录

    /etc/gitlab/gitlab.rb # 主配置文件
    /var/log/gitlab/ # 日志目录
    /var/opt/gitlab/ # 各个服务的主目录
    /var/opt/gitlab/git-data/repositories # Git仓库数据目录


• 修改默认访问端口,和数据目录

注意数据目录权限属主git

[root@gitlab data]# grep -Ev "^$|#" /etc/gitlab/gitlab.rb
external_url 'http://git.yfklife.cn'
git_data_dirs({ "default" => { "path" => "/var/opt/gitlab/git-data", 'gitaly_address' => 'unix:/var/opt/gitlab/gitaly/gitaly.socket' } })
nginx['listen_port'] = 88

``

• 通过nginx代理

upstream gitlab{
	server 127.0.0.1:88;
}
server
{
    listen 80;
    server_name git.yfklife.cn;
    location / {
      proxy_set_header Host $http_host;
      proxy_set_header X-Forwarded-Host $host;
      proxy_set_header X-Forwarded-Server $host;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header X-Graylog-Server-URL http://$server_name/;
      proxy_pass       http://gitlab;
    }
}

访问：http://git.yfklife.cn ,第一次访问会让你设置密码

通过docker-compose部署gitlab

mkdir -p /application/gitlab/{config,data,logs}

version: '2'
services:
    gitlab:
      image: 'gitlab/gitlab-ce:12.9.3-ce.0'
      restart: always
      hostname: 'git.yfklife.cn'
      container_name: 'gitlab'
      environment:
        TZ: 'Asia/Shanghai'
        GITLAB_OMNIBUS_CONFIG: |
          external_url 'http://git.yfklife.cn'
          gitlab_rails['time_zone'] = 'Asia/Shanghai'
          gitlab_rails['smtp_enable'] = true
          gitlab_rails['smtp_address'] = "smtp.qq.com"
          gitlab_rails['smtp_port'] = 465
          gitlab_rails['smtp_user_name'] = "1228145560@qq.com"
          gitlab_rails['smtp_password'] = "qwertyuiasdfgh"
          gitlab_rails['smtp_authentication'] = "login"
          gitlab_rails['smtp_enable_starttls_auto'] = true
          gitlab_rails['smtp_tls'] = true
          gitlab_rails['gitlab_email_from'] = '1228145560@qq.com'
      ports:
        - '18080:80'
      volumes:
        - /application/gitlab/config:/etc/gitlab
        - /application/gitlab/data:/var/opt/gitlab
        - /application/gitlab/logs:/var/log/gitlab
volumes:
    config:
    data:
    logs:

• 修改配置文件gitlab.rb

grep -Ev "^$|#" config/gitlab.rb

gitlab_rails['gitlab_default_can_create_group'] = false
gitlab_rails['gitlab_username_changing_enabled'] = false
gitlab_rails['ldap_enabled'] = true
gitlab_rails['ldap_servers'] = YAML.load <<-'EOS'
      label: 'LDAP'
      host: '192.168.0.28'
      bind_dn: 'cn=admin,dc=yfklife,dc=cn'
      password: 'yfk123456'
      active_directory: false
      allow_username_or_email_login: false
      base: 'ou=users,dc=yfklife,dc=cn'
      user_filter: ''
      attributes:
        username: ['uid', 'userid', 'sAMAccountName']
        email:    ['mail', 'email', 'userPrincipalName']
        name:       'cn'
        first_name: 'givenName'
        last_name:  'sn'
EOS

配置

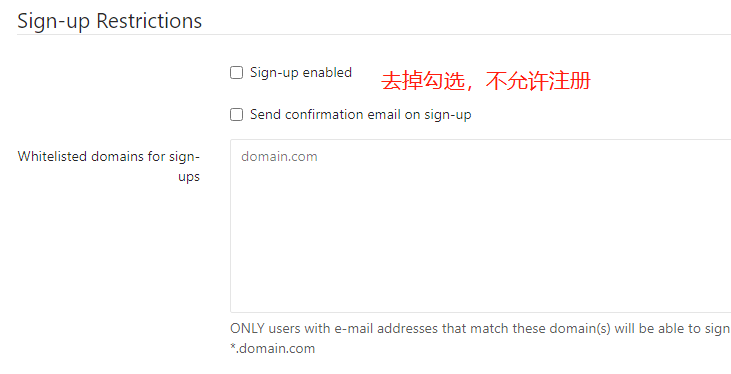

• 不允许用户注册

LDAP用户登录

gitlab_Version：9.1.3

docker-compose部署openLDAP

vi /etc/gitlab/gitlab.rdb

gitlab_rails['ldap_enabled'] = true
gitlab_rails['ldap_servers'] = YAML.load <<-'EOS'
    main:
      label: 'LDAP'
      host: '192.168.14.11'
      port: 389
      uid: 'cn' #默认SamAccountName 如果要使用中文登录时就使用默认配置SamAccountName，英文登录为cn
      method: 'plain' # "tls" or "ssl" or "plain"
      bind_dn: 'cn=admin,dc=yfklife,dc=cn' #ldap管理员登录用户
      password: 'yfk123456' ##指定ldap服务器的管理员密码
      active_directory: false
      allow_username_or_email_login: false
      block_auto_created_users: false
      base: 'ou=users,dc=yfklife,dc=cn' #注意ou名称，和ldap组织对应
      user_filter: ''
      attributes:
        username: ['uid', 'userid', 'sAMAccountName']
        email:    ['mail', 'email', 'userPrincipalName']
        name:       'cn'
        first_name: 'givenName'
        last_name:  'sn'
EOS

注意ou要对应

gitlab-ctl reconfigure #加载配置

如果无法登录，查看登录日志： tailf /var/log/gitlab/gitlab-rails/production.log

备份与还原,迁移

gitlab官方备份文档 (opens new window)

备份

在终端中执行：

• 备份

gitlab-rake gitlab:backup:create

    备份文件所在路径为：/var/opt/gitlab/backups/
    备份得到的文件格式如：1642777140_2022_01_21_gitlab_backup.tar  时间挫_年_月_日_gitlap版本_gitlab_backup.tar
    若需修改备份文件的存放路径：vim  /etc/gitlab/gitlab.rb 修改# gitlab_rails['backup_path'] = "/var/opt/gitlab/backups"即可

还原

• 停止相关数据连接服务

注意：不能直接在终端执行gitlab-ctl stop停止所有服务。因gitlab删除和还原操作还需要使用到redis和postgresql连接

gitlab-ctl start #先保证服务是都起来的，再停止
gitlab-ctl stop unicorn
gitlab-ctl stop sidekiq

假设从 1642777140_2022_01_21_gitlab_backup.tar 备份文件中恢复

• 还原

gitlab-rake gitlab:backup:restore BACKUP=1642777140_2022_01_21

• 启动gitlab服务

gitlab-ctl start

• 迁移

gitlab迁移不支持版本的变更，需要保持和原来的版本一致

迁移和还原差不多，就多两步推送文件（/var/opt/gitlab/backups/），授权

chown git.git /var/opt/gitlab/backups/* #授权

gitlab-rake gitlab:backup:restore BACKUP=1642777140_2022_01_21 #还原1642777140备份版本
